| Item | Specifications | Item | Specifications |
| Size Range Bag | Max.L550*W420*H250(mm) | Packing Film | PE Precast Bag |
| Packing Specification | 4,6,8,10,12,18 rolls | Set Packing Speed | 25 bags/min |
| Total Power Supply | 9 kw | Stable Packaging Speed | 5-20 bags/min |
| Mini Air Pressure Requirement | 0.5 Mpa | Power Supply | 380V 50HZ |
| Weight | 1900 kg | Outline Dimension | L2600*W1500*H1950(mm) |
Product Overview

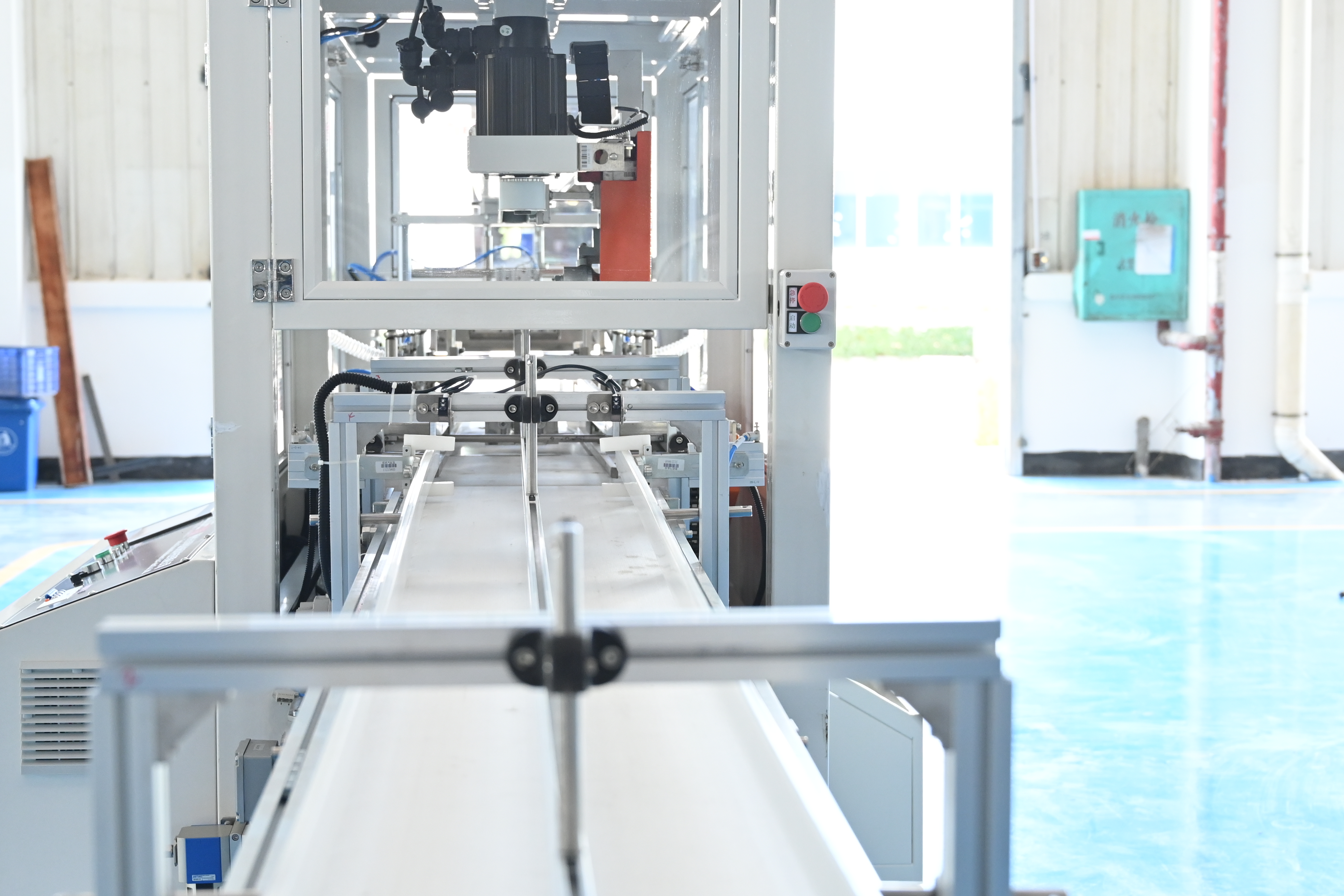

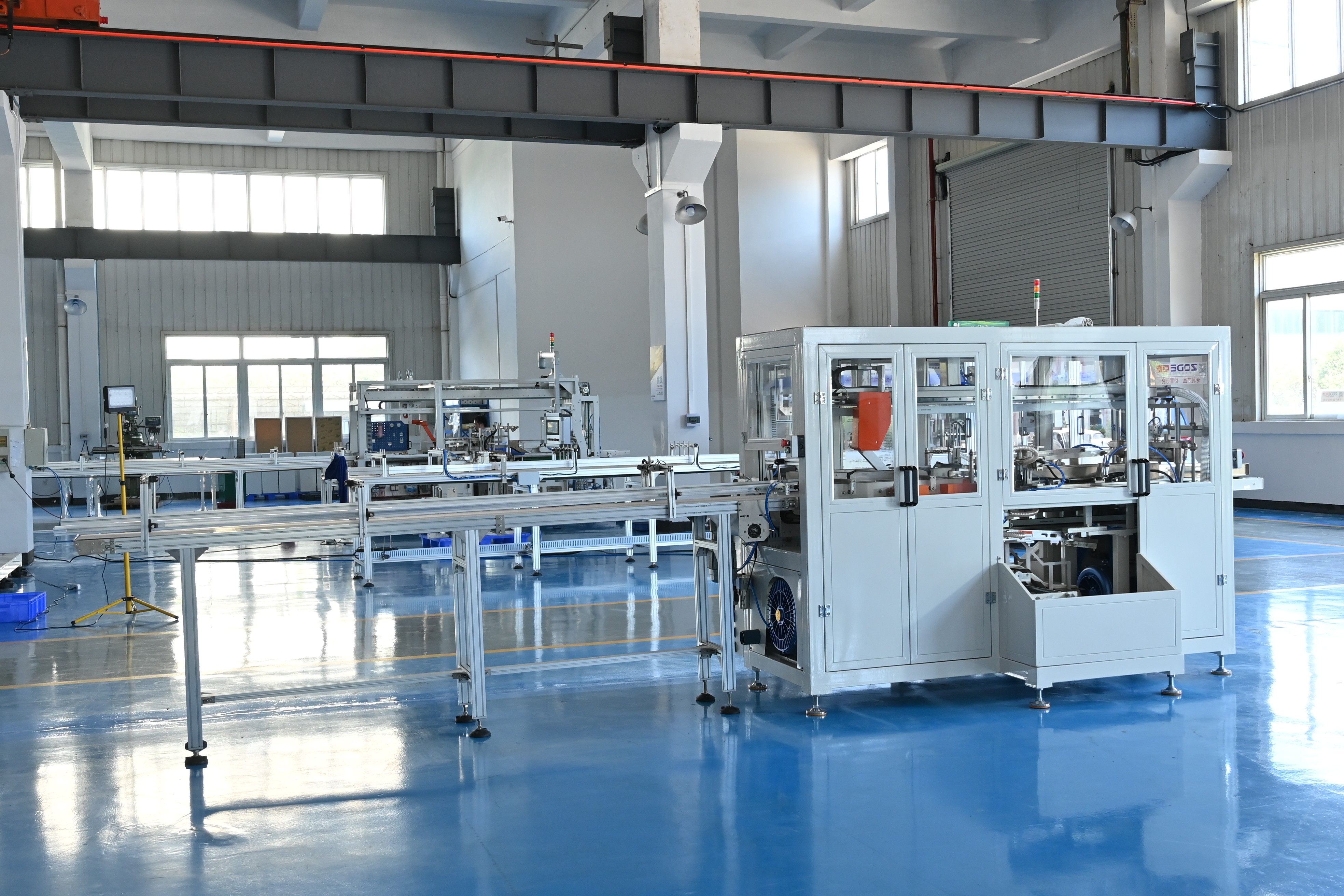

ZD-J25 Toilet Tissue Roll Bundling Packing Machine
ZD-J25 is the machine for packing toilet tissue roll, can wrap two lanes of single-layer toilet tissue roll. It adopts progressive servodrive, touch, screen and PLC. Parameter is setted conveniently and quickly. This machine automatically completes product from the automatic feeding, arranging, opening the bag, filling into the bag, inserting angle and sealing. The machine is designed to have a quick, flexible format changeover. It also uses the world's advanced 180-degree flip on the bag body, making the device smaller, lower energy consumption.
Packing Samples and Shipping
Toilet Tissue Paking Images
Shipping
Certifications
We focus on research and innovation for many years. With full independent intellectual property rights, ZODE Machinery has passed international certification I S O 9 0 0 1 and many national invention patents. We have full independent intellectual property rights.
Exhibitions
We are so glad to have the opportunities to showcase our toilet tissue paper roll and kitchen towel roll packaging machine and other household paper production line machines and technology to abroad audience of tissue industry professionals from all over the world. For these years, we have been to Dubai, Egypt, Milan, Istanbul and so on. We still moving forward, searching for a broader market and long-term cooperation with customers from all over the world.
FAQ
Q1:Are you trading company or manufacturer?
A1:We are factory.
Q2: How long is your delivery time?
A2: 30-60 days after received a deposit, it is according to quantity.
Q3: Do you provide design?
A3: We can provide solutions to customers from products choosing, designing,installing and training.
Q4: What is your terms of payment?
A4: 30% T/T in advance, balance before shipment.
Q5: How much area the whole production line needs?
A5: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
Q6: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A6: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60HZ, 3ph 415V 60HZ, 3ph 220V 60HZ and so on.
