100m/Min Glue Lamination 45g/M2 Toilet Paper Rewinding Machine

Name: 100mMin Glue Lamination 45gM2 Toilet Paper Rewinding Machine
Brand: ZODE
Price: 20000 USD

Brand Name : ZODE

Model Number : ZD-F250

Certification : CE,ISO9001,ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : USD 20000-300000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60 sets per month

Delivery Time : 30-60 days

Packaging Details : wooden case

Warranty : 2 years

After-sales service provided : Engineers available to service machinery overseas,Online support,Field installation,commissioning and training

Type : Paper Cutting Machine,Tape Rewinding Machine,automatic

Processing type : paper machine,Embossing Machine,toilet paper maker

Application : Paper Industry,Slitting large jumbo roll into small rolls,Paper slit

Capacity : 2-20 tons per day

Name : Kitchen Towel Toilet Paper Making Machine

Contact Now

Automatic Glue Lamination Kitchen Towel Toilet Paper Making Machine

Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

Functions and Features --- Wall Type Automatic Rewinding Machine
This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
Perforation distance is adjustable to meet different distance needs.
Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
Adopt jogging switches for wearing the paper, easy and safe to operate.

100m/Min Glue Lamination 45g/M2 Toilet Paper Rewinding Machine

Technical data:

Technical Parameters
Model		1092	1575	1880	2100	2700	2800	3000
Raw Paper Width (mm)		1350	1750	2100	2300	2500	2850	3000
Applicable Raw Paper		12—45g/m² toilet paper, hand towel paper
Raw Paper Core Dia.		Φ76 (Please specify)
Raw Daper Dia.		Φ1500mm Φ2000mm
Finished Droduct Max Dia.		Φ400mm
Finished Product Core Dia.		Φ40mm—Φ76mm (Other size, please specify)
Control System		Frequency conversion speed regulator
Slitting Width		90mm 95mm (Other size, please specify)
Rewinding		Air shaft
Speed		0-200m/min
Paper Tail Finishing		Paper tail trimmed, glue spraying, automatic rolling paper end
Power		AC380V 50HZ
Air Supply		0.5Mpa
Options (To order)
Embossing	Steel to steel, steel to rubber, steel to wool
Edge Embossing	Pneumatic control, steel to steel

100m/Min Glue Lamination 45g/M2 Toilet Paper Rewinding Machine

Product Tags:

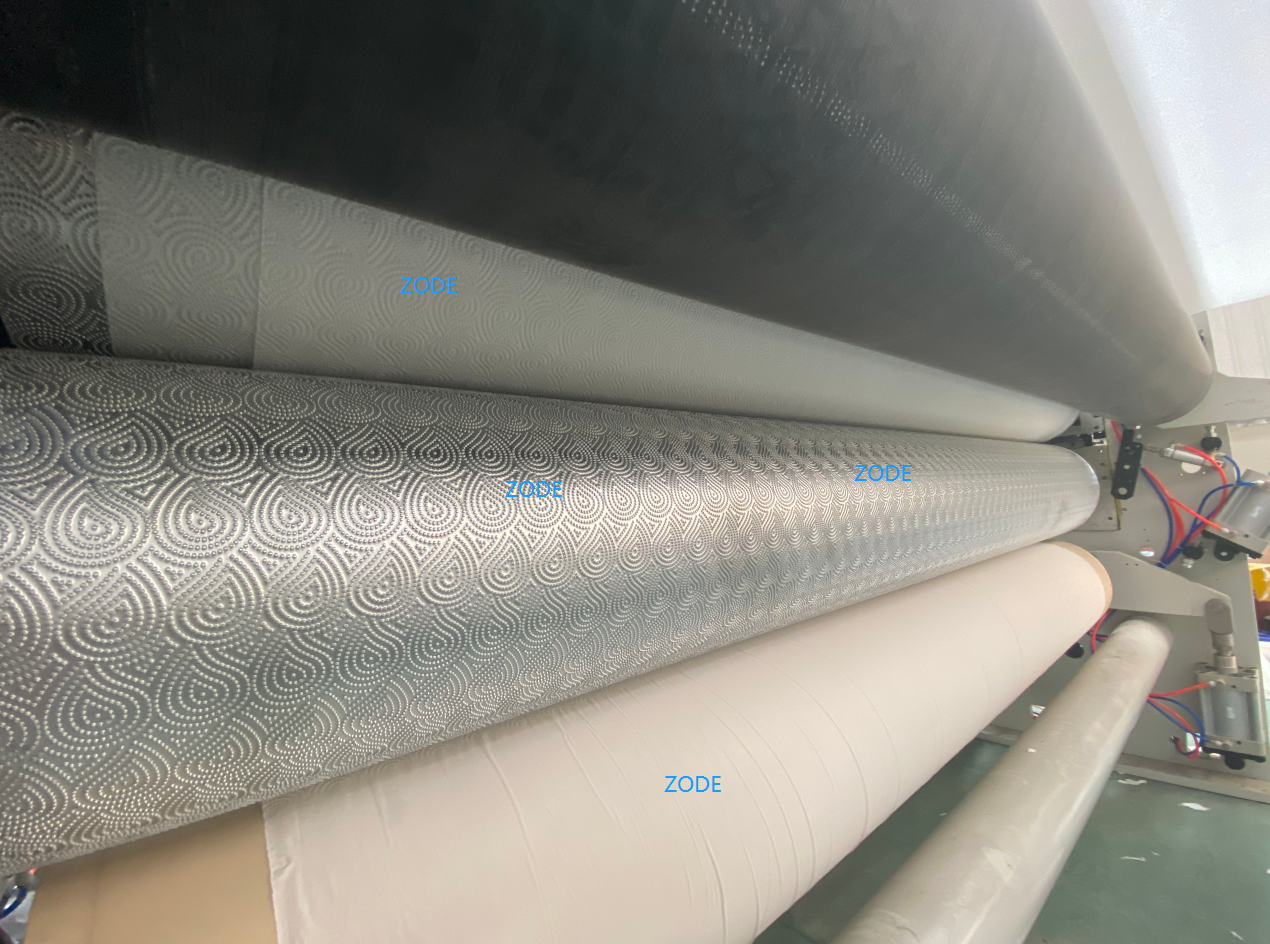

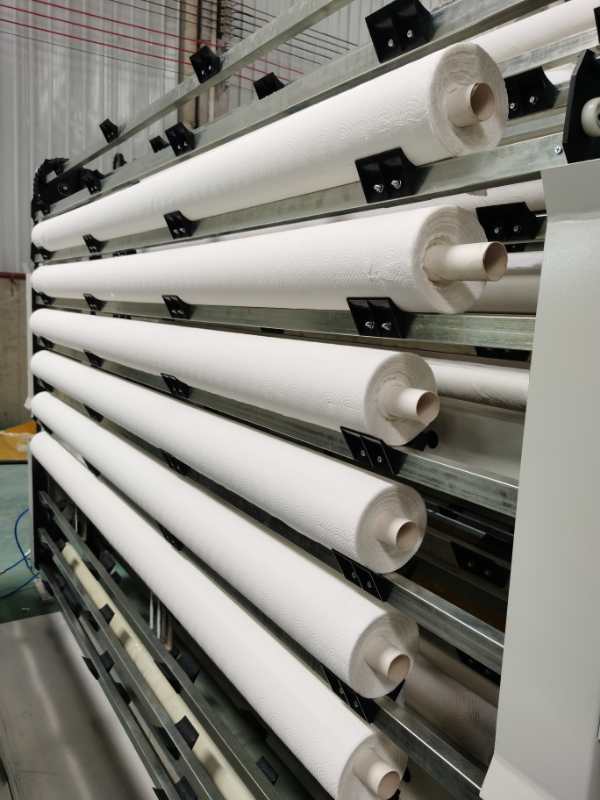

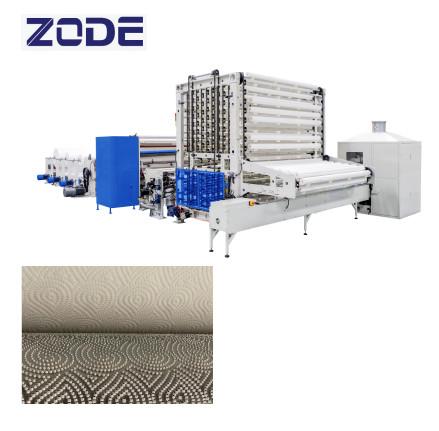

100m/Min Glue Lamination 45g/M2 Toilet Paper Rewinding Machine Images
