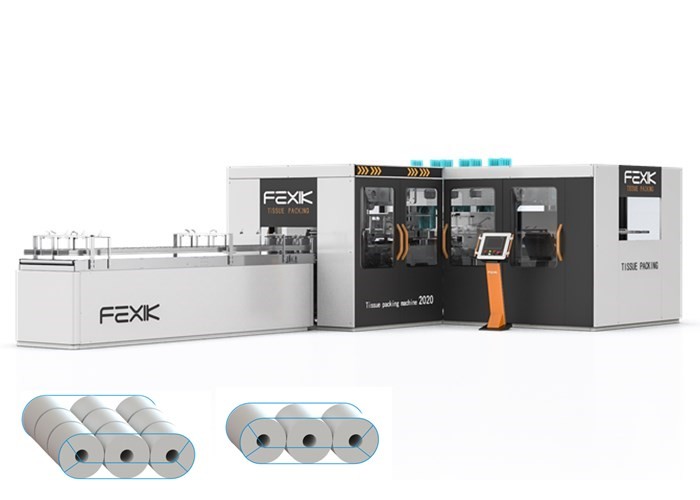

FEXIK Jumbo Roll Toilet Paper Pocket Tissue Packing Machine Automatic
Description:

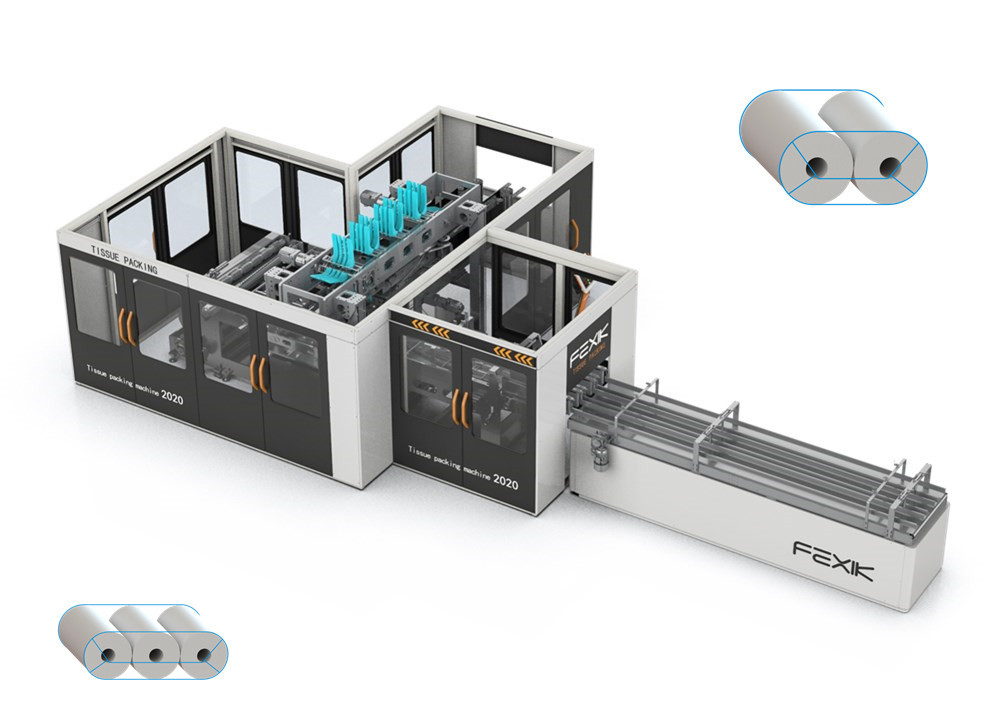

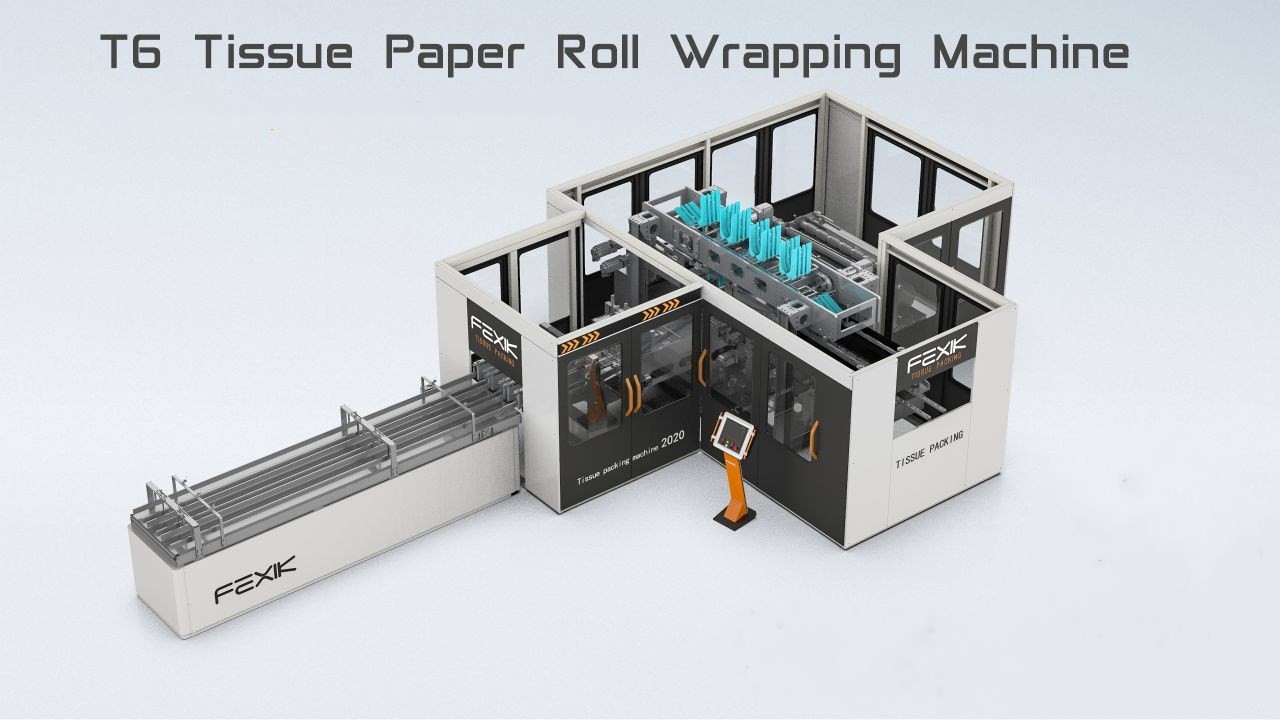

1.The wrapper F-T6 is our latest design and most advanced machine for packaging toilet tissue and kitchen towel rolls with a wide range of wrapping configuration.
2.It is a new generation wrapper with high production speed.
Main Features and Advantages
- It adopts full servo technology, touch screen and PLC motion control system.Parameters can be set conveniently and quickly, Machine Automatically completes produce from the automatic feeding,arranging, wrapping and sealing.Running in a high speed.
- This machine is designed to have various specifications format changeover between toilet roll and kitchen towel, can meet the different requirements of customer’s market.
- Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.
- This machine is used printed film roll or paper to pack the tissue,it save the cost of plastic bag.
| NO | Name | Technical Parameters |
| 1 | Air Consumption |
＜500 L/Min |
| 2 | Wrapping Material | PE,LDPE |
| 3 | PE thickness,LDPE |
25-50 microns |
| 4 | Power consumption | 18KW |
| 5 | Installed power | 35kw |
| 6 | Layers | 1 |
| 7 | Infeed | 3 lanes |
Plastic finger design
1.Unlike conventional wrappers, each pair of trolleys stops only once, to receive the rolls and
the rest of period is constantly moving with minimal required speed in area of side folders.
2.This is something which significantly improve folding quality.
3.Bottom sealer is in fixed position and work in rotary mode. It synchronizes comprehensive speed
with trolley speed in sealing area .
4.This allows longer and more stable contact between the bottom
sealer and the sealing section of the pack, which results in high sealing quality.

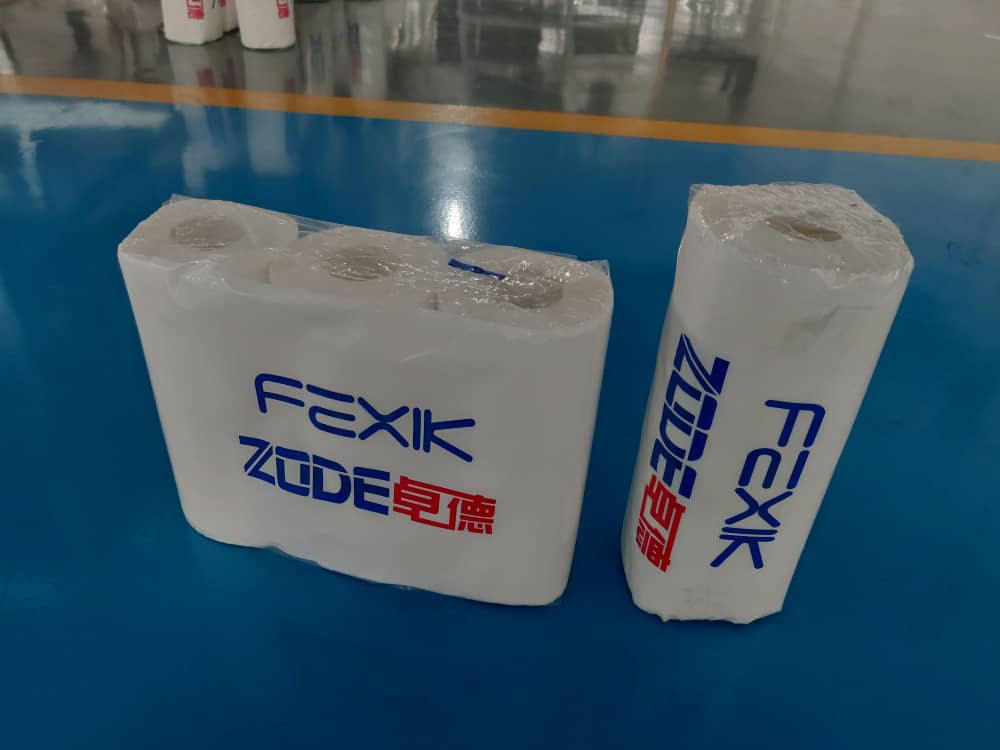

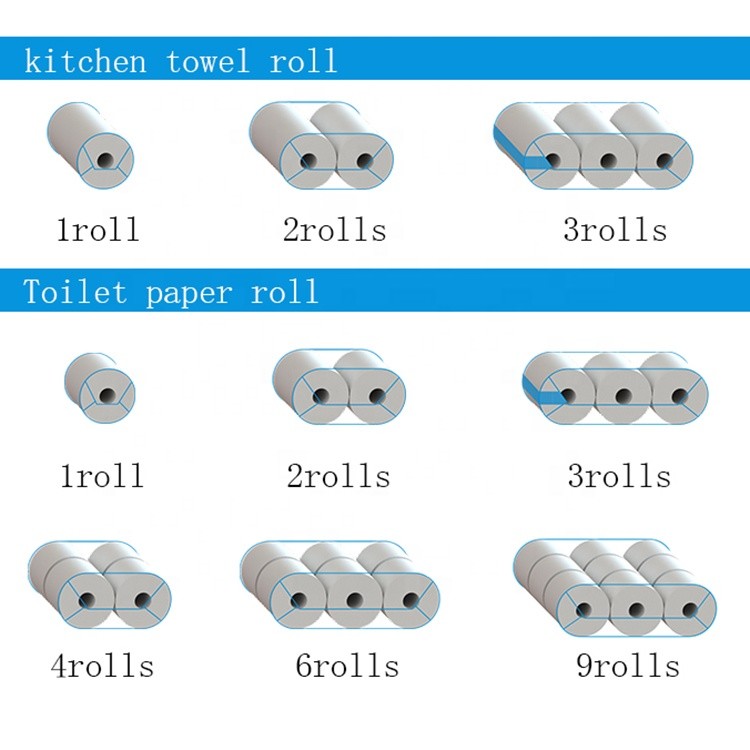

Kitchen Towel:1roll & 3 Rolls

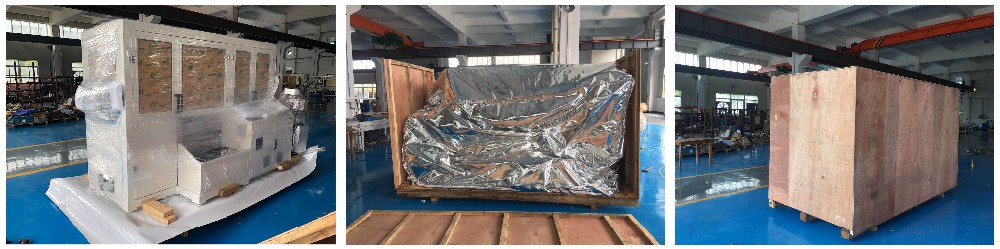

Packing & Delivery
Packaging:
• Cover with plastic film.
• Packed with wood tray or wood case, it depends on the machine model.
Delivery terms:
• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 60days after received the down-payment.
