4 Lanes W100mm 80packs/Min Paper Roll Wrapping Machine

Product Categories
LIUZHOU ZODE MACHINERY SCI-TECH CO.,LTD.
Contact Now

4 Lanes W100mm 80packs/Min Paper Roll Wrapping Machine

  • 1
  • 2

Brand Name : FEXIK

Model Number : F-T8

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1

Price : USD 240000-270000 USD/SET

Payment Terms : T/T

Supply Ability : 15 sets/year

Delivery Time : 150days

Packaging Details : standard package for sea shipping

Usage : to pack toilet paper roll wrapping machine

Production speed : 80 packs/min

Infeed : 4 lanes

Layers : up to 2 layers design

Average format changeover time : 30 min

Roll diameter : 90-160(200)mm(3.5”-6.3”)(7.9”)

Roll length : 90-300(3.5”-11.8”)

Pack width : 100-650mm(3.9”-25.6”)

Pack length : 90-630mm(3.5”-24.8”)

Pack height : 90-270mm(300mm) (3.5”-10.6”)(11.8”)

Power supply : 380V 50Hz

Air Consumption : ＜500 L/Min

Wrapping Material : PE,LDPE film roll

PE thickness,LDPE : 45 microns

Real Power consumption : 35KW

Contact Now

FEXIK machinery automatic toilet paper roll wrapping machine

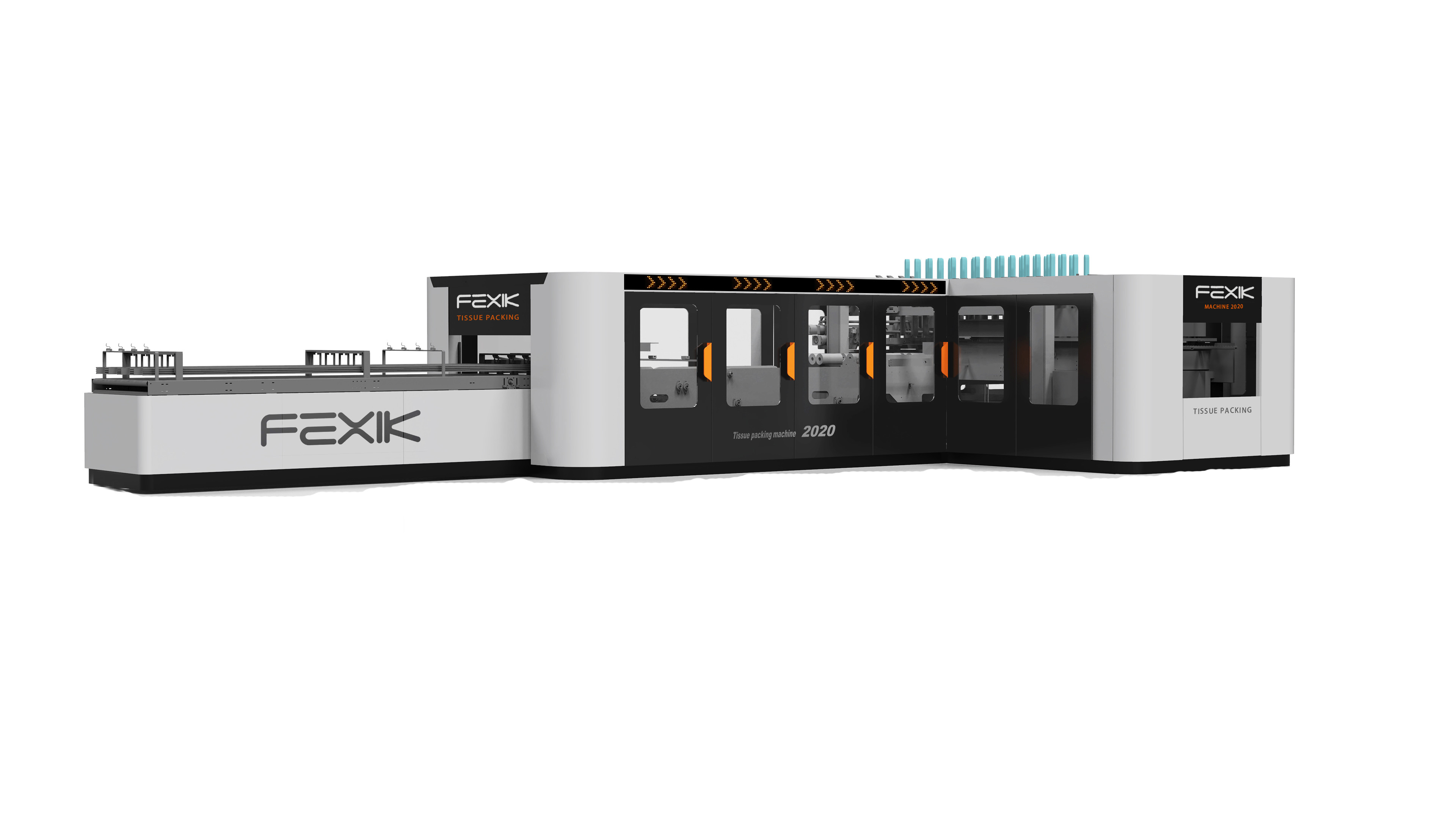

1. Machine Appearance

General Description

The packing machine F-T8 is an advanced machine for wrapping toilet tissue, maxi roll and kitchen towel rolls with various wrapping configurations. It is a new generation bundling packing machine with high speed. It runs in a high speed with maintaining perfect shape, at the same time grants extremely easy and quick to change formats.

4 Lanes W100mm 80packs/Min Paper Roll Wrapping Machine

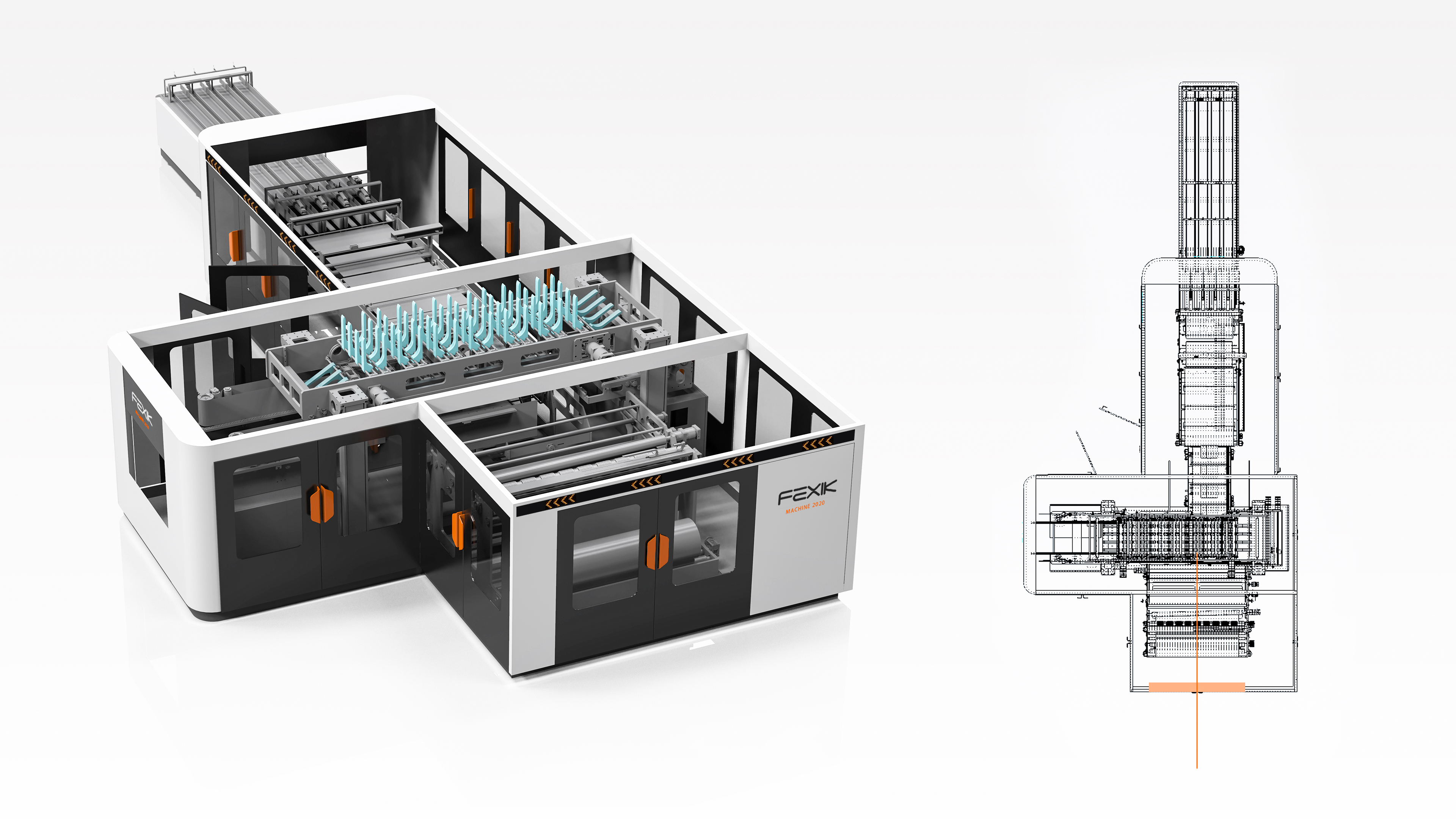

2. Main Features and Advantages

1) It is fully servo driven, controlled by the most advanced motion controller SIMOTION D

2) User friendly HMI with aided operation & changeovers, variety of packaging configurations are available.

3) Optional for 5 lanes infeed function and vertical toilet rolls configuration.

4) Selecting bearings, reducers, guide rails, sliders, and various photoelectric are chosen from the world's well-known brands. At the same time, rugged components are used in all areas to reduce vibration and ensure long-term reliability

4 Lanes W100mm 80packs/Min Paper Roll Wrapping Machine

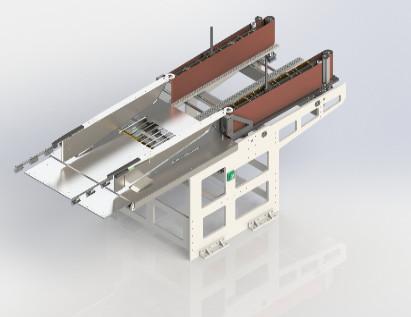

3. Conveyor design

Four-channel motorized belt conveyor, about 4meters long, controlled by inverter, for rolls accumulation.

The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls.

4 Lanes W100mm 80packs/Min Paper Roll Wrapping Machine

4. Main Technical Parameters

Name Technical Parameters
Production speed 35-140 packs/min
Max mechanical speed 160 packs/min
Infeed 1-5 lanes
Layers 1 or 2 layers design
Average format changeover time 10-30 min
Roll diameter 90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length 90-300(3.5”-11.8”)
Pack width 100-650mm(3.9”-25.6”)
Pack length 90-630mm(3.5”-24.8”)
Pack height 90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply 380V 50HZ/60HZ
Air Consumption ＜500 L/Min
Wrapping Material PE,LDPE
PE thickness,LDPE 25-50 microns
Real Power consumption 32KW
Machine weight About 8000kg

welcome to contact us!
