25min Toilet Tissue Machine , 120packs/Min Roll Packaging Machine

Name: 25min Toilet Tissue Machine 120packsMin Roll Packaging Machine
Brand: FEXIK
Price: 240000 USD

Quality 25min Toilet Tissue Machine , 120packs/Min Roll Packaging Machine wholesale

Brand Name : FEXIK

Model Number : F-T8

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1

Price : USD 240000-270000 USD/SET

Payment Terms : T/T

Supply Ability : 15 sets/year

Delivery Time : 120-150days

Packaging Details : standard package for sea shipping

Usage : tissue paper production machine paper roll wrapping machine

Production speed : 15 to 140 packs/min

Infeed : 1 to 5 lanes

Layers : 1 to 2 layers design

Average format changeover time : 10 to 30 min

Roll diameter : 90-160(200)mm(3.5”-6.3”)(7.9”)

Roll length : 90-300(3.5”-11.8”)

Pack width : 100-650mm(3.9”-25.6”)

Pack length : 90-630mm(3.5”-24.8”)

Pack height : 90-270mm(300mm) (3.5”-10.6”)(11.8”)

Air Consumption : ＜500 L/Min

Wrapping Material : PE,LDPE

PE thickness,LDPE : 25-50 microns

Real Power consumption : 32KW

Color : black

Contact Now

tissue paper production machine paper roll wrapping machine

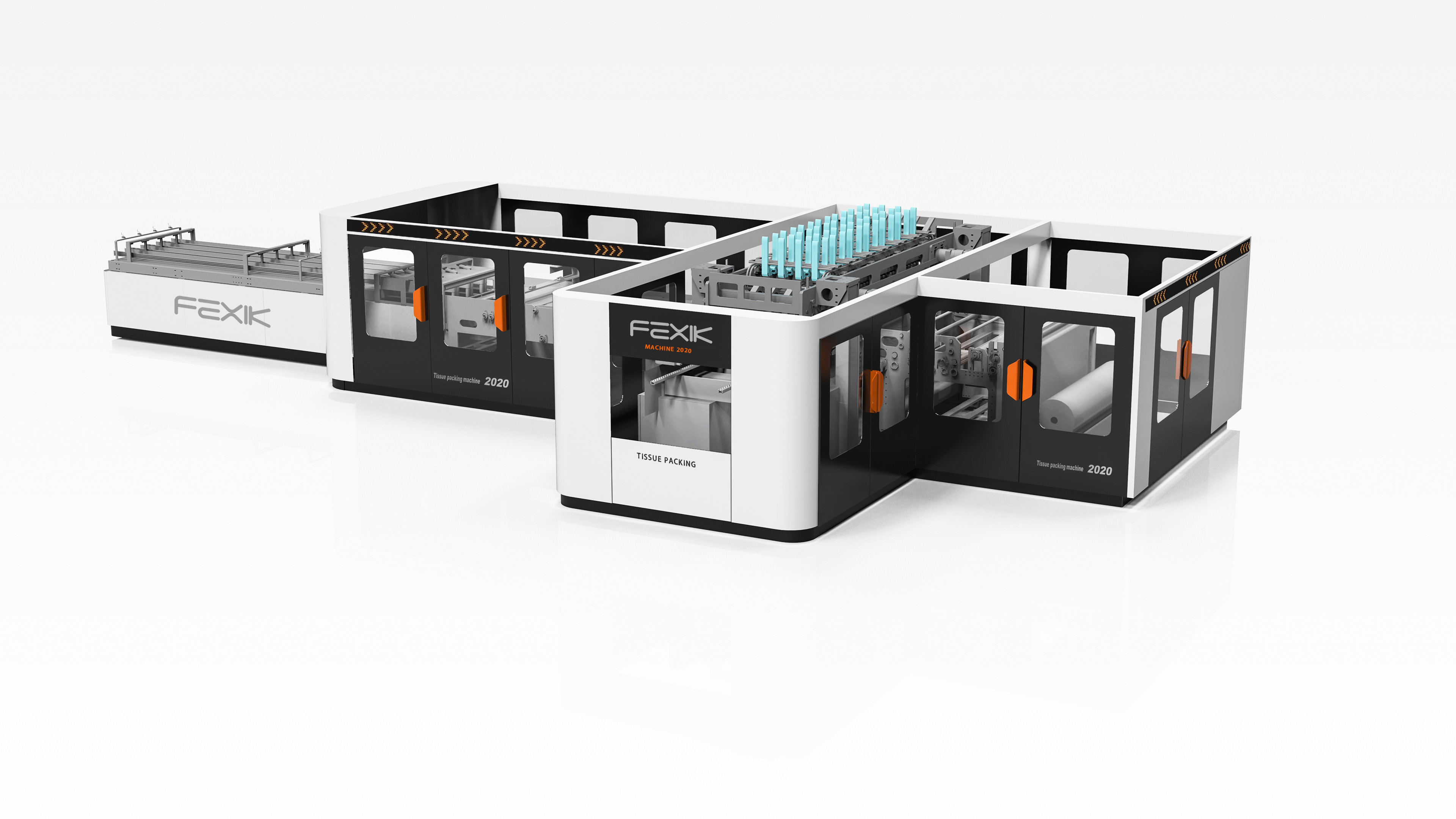

Machine Appearance and General Description

It is used for packing maxi tissue roll, toilet paper roll and paper towel roll, an quipment at the end part of tissue paper production line.

25min Toilet Tissue Machine , 120packs/Min Roll Packaging Machine

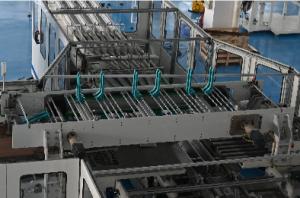

Its working process: the tissue paper rolls are coming from log saw cutting machine and rewinder by conveyor belt; they are launched in the number of channels according to wrapping configuration set on touch screen, single layer or double layers and transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of tissue paper rolls on the belt, which leads them into the area of folding. The foil positioning section brings the packing film directly above the tissue rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 21 independent servo motors and 6 inverter motors.

Name	Technical Parameters
Production speed	35-140 packs/min
Max mechanical speed	160 packs/min
Infeed	1-5 lanes
Layers	1 or 2 layers design
Average format changeover time	10-30 min
Roll diameter	90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length	90-300(3.5”-11.8”)
Pack width	100-650mm(3.9”-25.6”)
Pack length	90-630mm(3.5”-24.8”)
Pack height	90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply	380V 50HZ/60HZ
Air Consumption	＜500 L/Min
Wrapping Material	PE,LDPE
PE thickness,LDPE	25-50 microns
Real Power consumption	32KW
Machine weight	About 8000kg

25min Toilet Tissue Machine , 120packs/Min Roll Packaging Machine

3. Main Features and Advantages

This wrapping machine adopts Simotion D control system

1) Packing Material: plastic film
2) Infeeding lanes: 1 to 4 lanes (optional 5 lanes)
3) Layers: 1 to 2 layer.
4) Configuration:
Maxi roll: 1 roll pack, 2rolls pack
Kitchen towel: 1, 2, 3rolls .....20rolls pack
toilet rolls: 2, 3, 4, 5, 6, 8, 9 rolls .....50rolls pack.
5) Speed: 35packs- 160 packs per min.ct shape

25min Toilet Tissue Machine , 120packs/Min Roll Packaging Machine

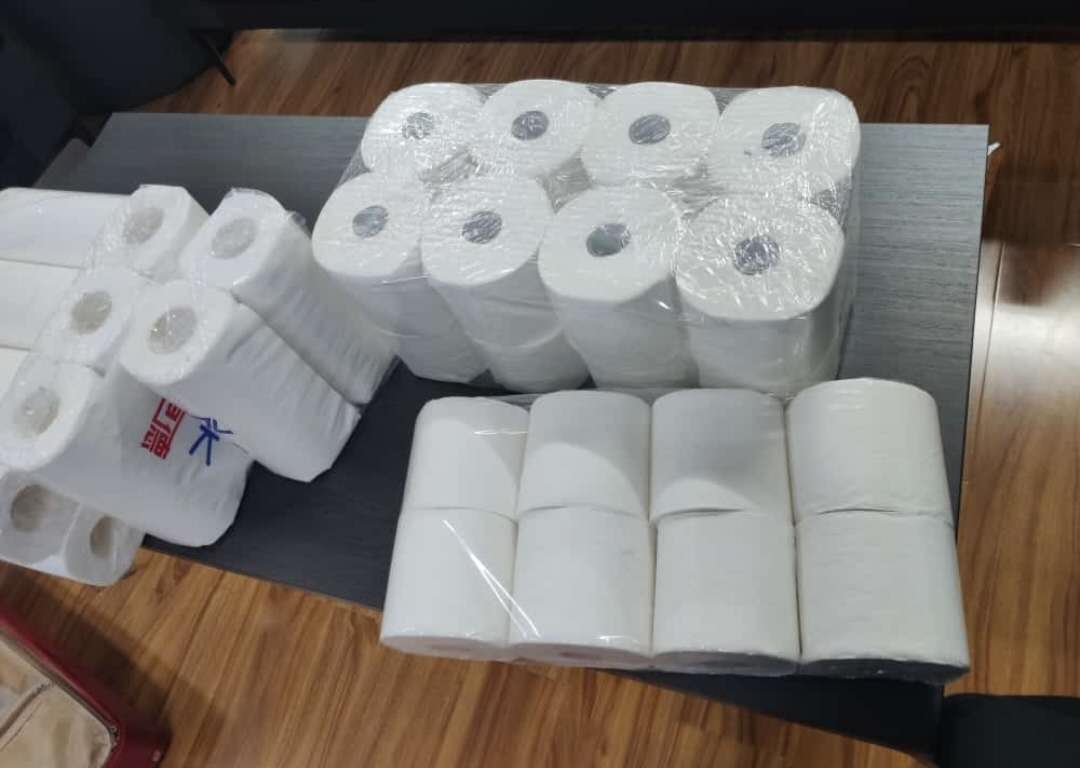

Smaples:

25min Toilet Tissue Machine , 120packs/Min Roll Packaging Machine

welcome to contact us!
