40 Microns 10min Converting Paper Roll Wrapping Machine

Name: 40 Microns 10min Converting Paper Roll Wrapping Machine
Brand: FEXIK
Price: 240000 USD

Quality 40 Microns 10min Converting Paper Roll Wrapping Machine wholesale

Brand Name : FEXIK

Model Number : F-T8

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1

Price : USD 240000-270000 USD/SET

Payment Terms : T/T

Supply Ability : 15 sets/year

Delivery Time : 120-150days

Packaging Details : standard package for sea shipping

Usage : tissue paper converting line toilet roll wraping machine

Production speed : stable 15 to 140 packs/min

Infeed : 1 to 5 lanes

Layers : 2 layers design

Average format changeover time : 10-30 min

Roll diameter : 90-160(200)mm(3.5”-6.3”)(7.9”)

Roll length : 90-300(3.5”-11.8”)

Pack width : 100-650mm(3.9”-25.6”)

Pack length : 90-630mm(3.5”-24.8”)

Pack height : 90-270mm(300mm) (3.5”-10.6”)(11.8”)

Air Consumption : ＜500 L/Min

Wrapping Material : PE,LDPE film material

PE thickness,LDPE : 40 microns

Color : black and orage and blue

Contact Now

tissue paper converting line toilet roll wraping machine

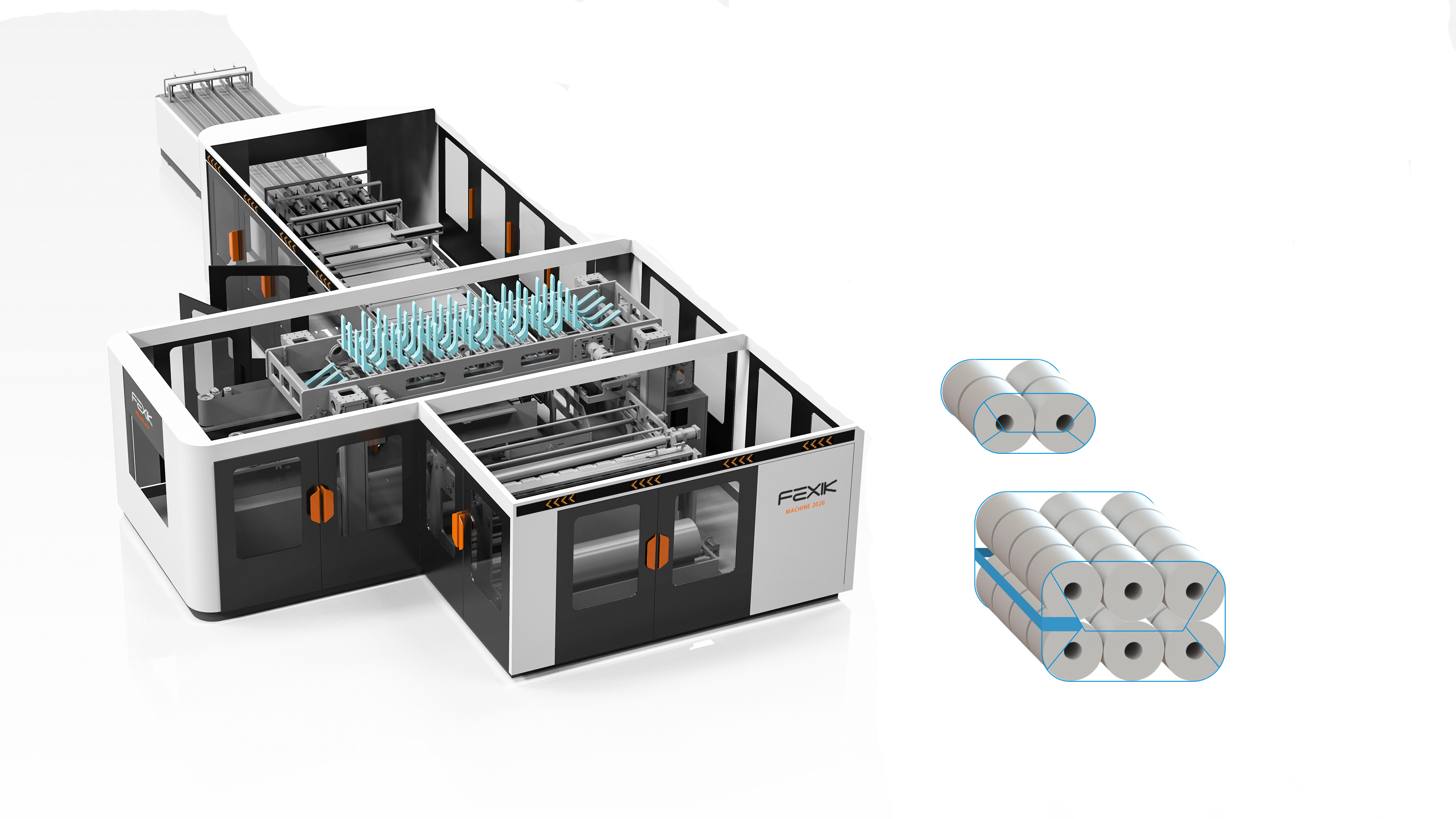

1. Machine Appearance

General Description

It is the end part of a converting line. Used to pack maxi roll, toilet paper and kitchen towel. The packing material is plastic film roll. This packing style is very popular in America, Europe, Latin America and some countries in Africa and Asia.

40 Microns 10min Converting Paper Roll Wrapping Machine

Name	Technical Parameters
Production speed	35-140 packs/min
Max mechanical speed	160 packs/min
Infeed	1-5 lanes
Layers	1 or 2 layers design
Average format changeover time	10-30 min
Roll diameter	90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length	90-300(3.5”-11.8”)
Pack width	100-650mm(3.9”-25.6”)
Pack length	90-630mm(3.5”-24.8”)
Pack height	90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply	380V 50HZ/60HZ
Air Consumption	＜500 L/Min
Wrapping Material	PE,LDPE
PE thickness,LDPE	25-50 microns
Real Power consumption	32KW
Machine weight	About 8000kg

3. Main Features and Advantages

1) Adopting SIEMENS SIMOTION control system and other advanced world famous brand components in pneumatic parts, electric parts and operation parts. Parameters can be set conveniently and quickly. Machine Automatically completes whole process from the automatic feeding, arranging, wrapping and sealing. Running in a high speed and no pollution.
2) This machine is designed to have various specifications format changeover between toilet roll and kitchen towel with advanced double layers arrangement system.
3) The machine is designed to have quick and flexible format changeover.
4) This machine is used printed film roll to pack, it saves the cost.
5) Maximum five-lane infeeding and packing function

40 Microns 10min Converting Paper Roll Wrapping Machine

Smaples

40 Microns 10min Converting Paper Roll Wrapping Machine

4. working principle

The rolls are coming by five channels conveyor; they are launched in the number of lanes according to packaging configuration needed, which is set by HMI, in the single layer or double layers into in-feed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 21 independent servo motors and 6 inverter motors.

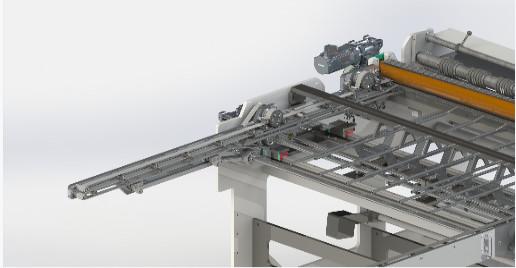

Four-channel motorized belt conveyor, about 4meters long, controlled by inverter, for rolls accumulation.

The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls.

40 Microns 10min Converting Paper Roll Wrapping Machine

welcome to contact us!
